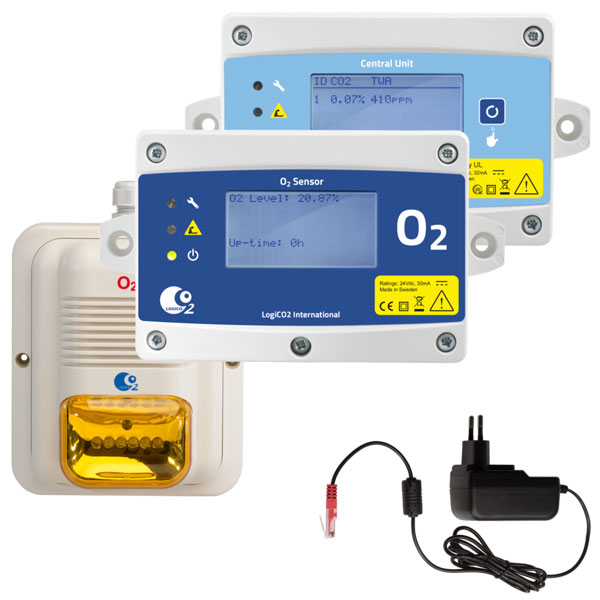

MK9 O2 Safety system

We believe that sensors should have as little service as possible over its lifespan. We therefore decided to stay away from the traditional Electro Chemical measuring cells traditionally used to monitor oxygen, when we developed our O2 MK9 Detector. Our OPTICAL O2 sensor uses the same proven self-calibration technology that we have used for many years with our CO2 sensors.

The LogiCO2 O2 sensor communicates via Modbus with the Mk9 Central Unit and can be used either together with other sensors or as a standalone unit. The default alarm levels is 19,5%. The LogiCO2 O2 sensor is delivered together with a Horn/Strobe alarm device.

Technical data

Power supply: 24V DC
Sensors: O2
Measuring range: 0-25 vol.%; alarm (<19.5 % O2)
Ambient temperature: -20 °C to +50 °C
Guarantee: 2 years
Dimensions (LxWxD): 90 x 161 x 38 mm
Ingress protection: IP54
