MK9 CO2 Safety system



The MK9 CO2 sensor is the latest generation of CO2 Safety Systems and has replaced the LogiCO2 MKVII CO2 Sensor System. A large display, functional design and revolutionary language functionalities are some of the new features of the MK9 CO2 Safety System. The display alternates between actual CO2 concentration (0.0%- 6,7%), TWA (ppm) and temperature (°C or °F), (if temperature alarm is activated for cold room applications).

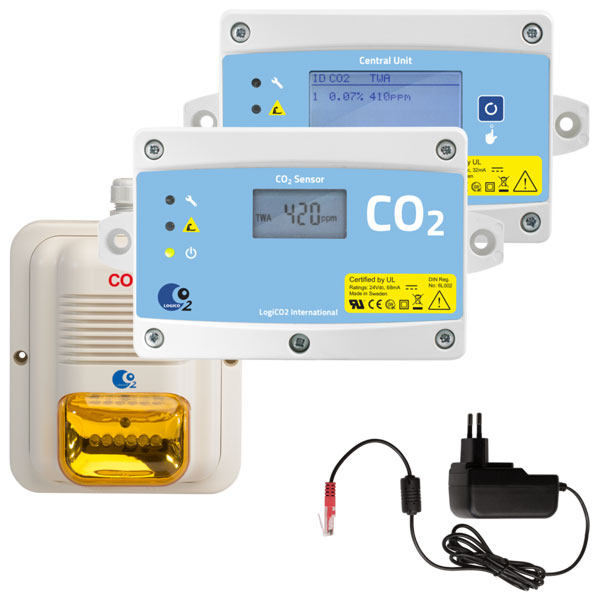

This complete plug and play SET contains a Mk9 CO2 Sensor with display, a Mk9 Central Unit to display the measured values, a Horn/strobe, cabling and signage. Up to eight sensors can be connected to the Mk9 CO2 Safety Detector SET, providing a sophisticated and powerful CO2 Safety System while still being the most economical and easiest system on the market. All LogiCO2 sensors have automatically calibration as standard. The alarm levels can be changed to any level to comply with all local Safety Codes and legislation.


Technical data


Power supply: 24V DC
Sensors: CO2
Measuring range: 0-3 vol.%, extended CO2 range 3-6,7 vol.%
Guarantee: 2 years
Annual zero point drift: <0.01 Vol.% with automatic self calibration feature
Size: 90 x 161 x 38 mm
Approval: Manufactured in accordance with DIN 6653-2.
The CO2 Safety System is tested and approved by the German TÜV-Rheinland.
EN 50081-1 / EN 50082-2 /CE.
Certified by UL.
