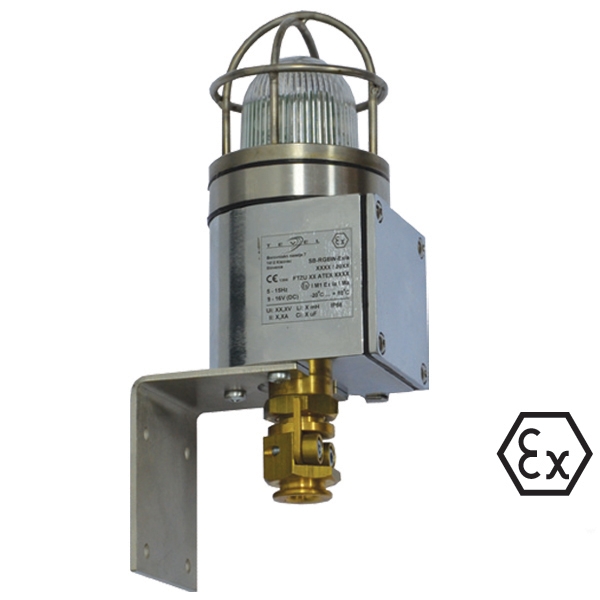

Signal LED flashing light SB-XX-Exia

Intrinsic safe signal LED flashing light SB-XX-Exia is intended for visual signalization of alarm states or any other especial events. It is designed for use in applications of underground mines (M1). Enclosure is made of stainless steel and assures high degree of mechanical impacts protection.

Main advantages

Robust design with latest Xlamp LED technology
With or without connection box
Long lifetime (over 50000h of operation)
Low power consumption
No maintenance required
High quality stainless steel enclosure
Selectable 4 different modes of operation
5 different signaling colors

Type	SB-0X-Exia	SB-1X-Exia
Junction box	NO	YES
Power supply	12 V(DC) intrinsic safe type ia
Current consumption	60 mA (70 mA for SB-X1-Exia)
Temperature range	-20°C to +40°C
Coding: YELLOW RED GREEN BLUE WHITE	SB-01-Exia SB-02-Exia SB-03-Exia SB-04-Exia SB-05-Exia	SB-11-Exia SB-12-Exia SB-13-Exia SB-14-Exia SB-15-Exia
Mechanical protection	IP54
External dimensions	104 x 80 mm	215 x 80 mm
Weight	0,43 kg	1,49 kg
Cable / cable gland	/	M20x1,5 (8-12 mm)
Explosion protection	I M1 Ex ia I
