Interface iRTD is an extension unit for MPU-** device for connecting ATEX-certified RTD sensors to MPU-** device. Interface is dislocated unit (dislocated measuring head) with dedicated cable connector, which is connected to MPU_** device.

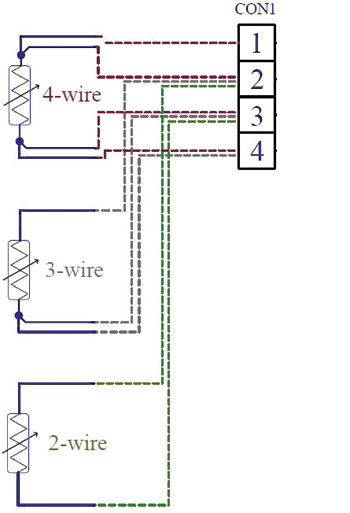

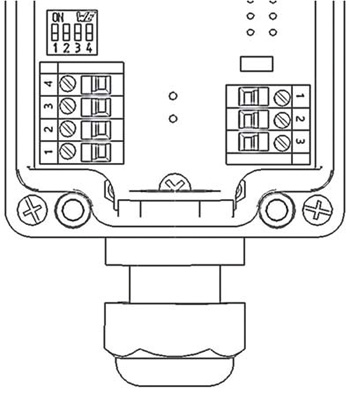

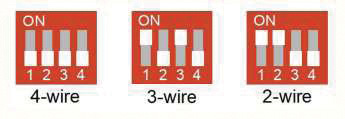

RTD sensor connection to iRTD-13/**.1 interface The extension iRTD-13/**.1 interface allows connecting ATEX-certified 2-wire, 3-wire, and 4-wire RTD sensors to MPU_** device. Connect the RTD sensor according to the diagram and picture below. The DIP switch shall be also set correctly.
Possible connections:
RTD (Resistance Temperature Detector) Pt100, Pt1000, PT xxxx
Thermocouple connection
Possible applications:
Measurements of temperature in coil layers
Measurements of temperature in water
Measurements of temperature on motors or water pumps
