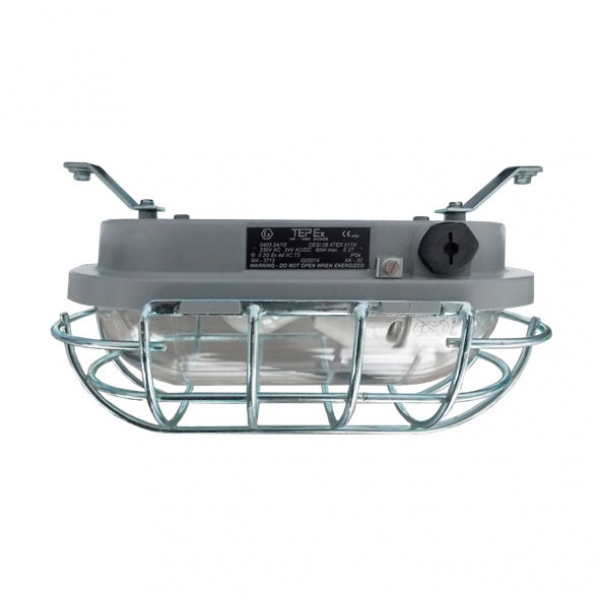

Bulkhead light fitting 0403.24

Housing:

0403.24/10 – aluminium powder painted casting,

0403.24/20 – cast iron

Diffuser: borosilicate glass protected with steel gird

Zone 1, 2, 21, 22 / I M2

Apparatus category:	II 2GD , I M2
Explosion protection:	Ex d e IIC T3-T2 Gb Ex tb IIIC T130° Db Ex d e I Mb
Enviroment temperature:	-40 °C ≤ Ta ≤ +40/50/60 °C – type II 2G -20 °C ≤ Ta ≤ +40 °C – type I M2
Degree of protection:	IP64
Rated voltage:	230V AC, 110V AC, 24V AC/DC
Max. wattage:	100 W, A/QT, 1800 lm
