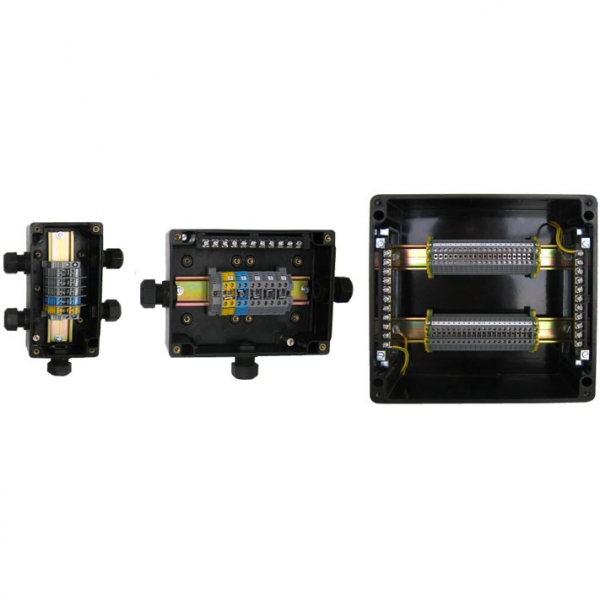

Terminal boxes SKX 12/E ... SKX 20/E

Construction

Enclosure: SMC glass fiber reinforced polyamide, color – black
Cover: SMC glass fiber reinforced polyamide with integrated thermoplastic elastomer gasket, closes with four M5/M6 stainless steel screws.

Zone 1, 2, 21, 22

Enclosures in shock-resistant glass fibre reinforced polyester resin
7 basic enclosure sizes
Fitted according to the customer’s requirements

Apparatus category:	II 2GD
Explosion protection:	II 2G Ex eb IIC T6 Gb II 2G Ex ia/ib IIC T6 Gb II 2G Ex eb ia/ib IIC T6 Gb II 2D Ex tb IIIC T80°C Db
Enviroment temperature:	-20 °C ÷ +50 °C [ATEX] -50 °C ÷ +50 °C [EAC]
Degree of protection:	IP66
Rated insulation voltage:	630 VAC
