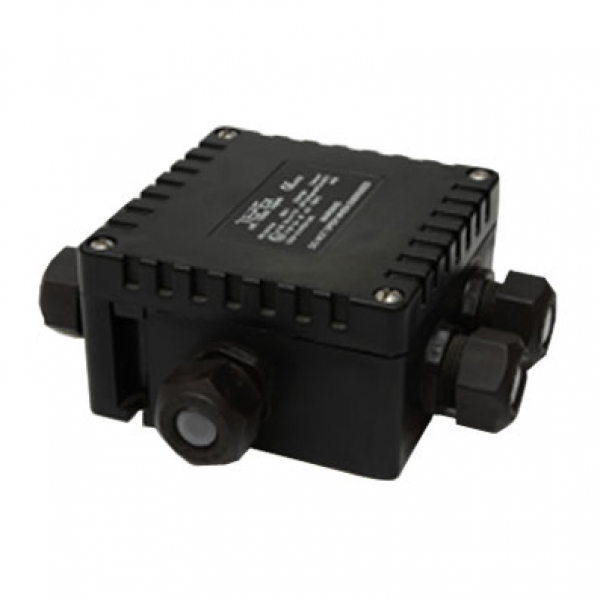

Enclosure: PA glass fiber reinforced polyamide, color – black Cover: PA glass fiber reinforced polyamide with integrated thermoplastic elastomer gasket, closes with four M5 stainless steel screws.
Zone 1, 2, 21, 22
Enclosures made of PA glass fiber reinforced polyamide
The cover screws and all other external metal parts are made of stainless steel (AISI 316L)
Equipped with terminals up to 6 mm2
Pillar (mantle) terminals
Apparatus category:
II 2GD
Explosion protection:
Ex eb IIC T6 Gb Ex ia/ib IIC T6 Gb Ex tb IIIC T80°C Db
Enviroment temperature:
-20 °C ≤ Ta ≤ +50 °C, Ta ≤ +70 °C for Exi [ATEX] -50 °C ≤ Ta ≤ +50 °C [EAC]
